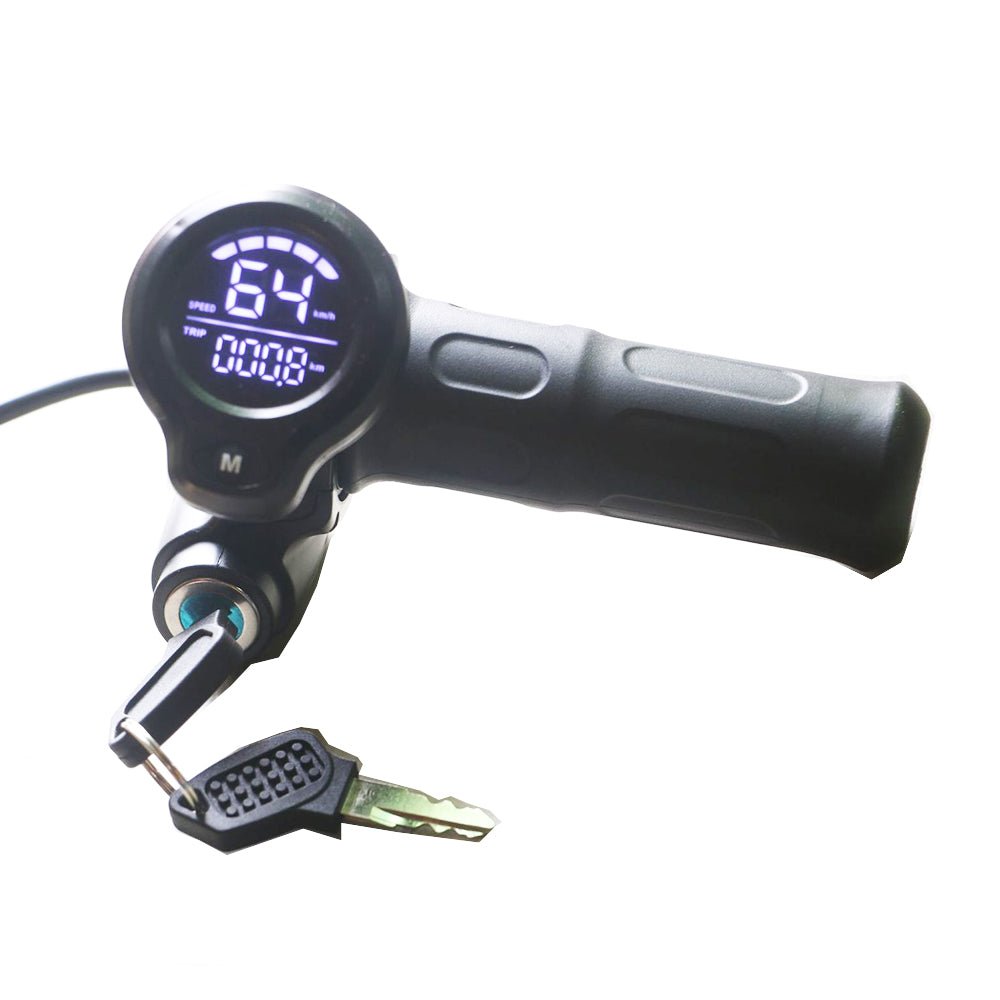

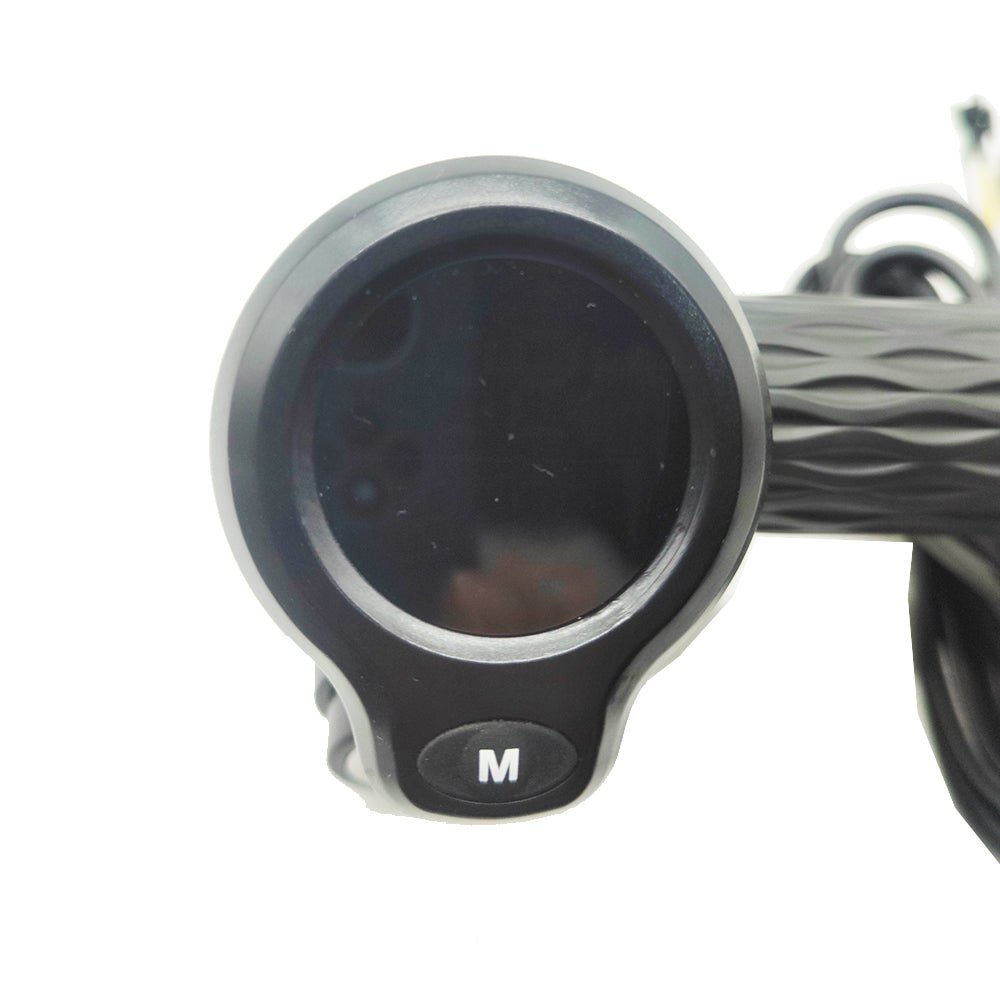

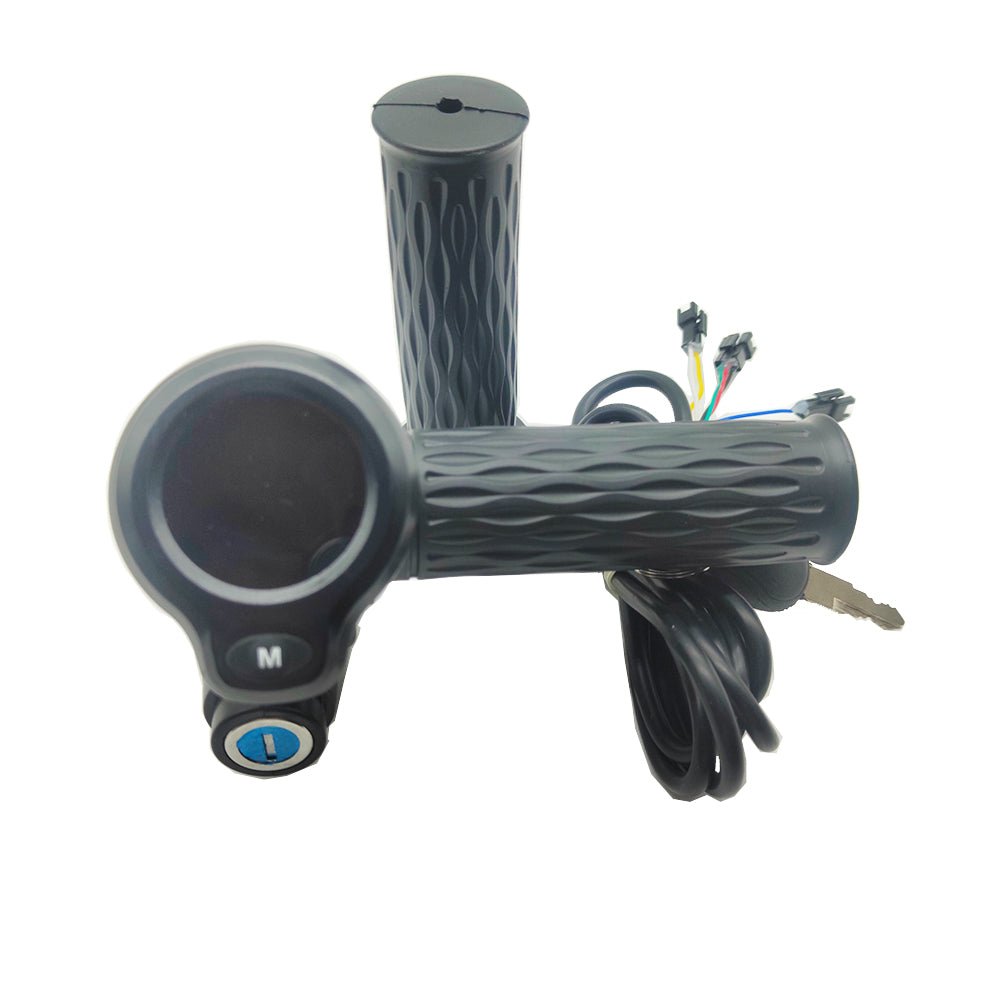

24V 36V 48V 60V E-Bike E-Scooter Twist Throttle With Speed LCD Display

Note: The throttle is marked as 48V, and the default is also 48V. However, both 24V, 36V, 48V, and 60V can be used, and the buyer needs to set the voltage themselves.

- This is a throttle that can display speed and mileage

- Suitable for most brushless controllers and has a wide range of applications

- Handle is designed to prevent slipping, making it very durable

How to use:
1. Press and hold the M-key, then turn the key to start the machine
2. Long press and hold the M-key until the voltage parameter flashes,
3. Short press and hold the M-key to switch the voltage until the desired voltage is reached
4. Long press and hold the M-key until P02 flashes, then shut down and save the parameter settings.)

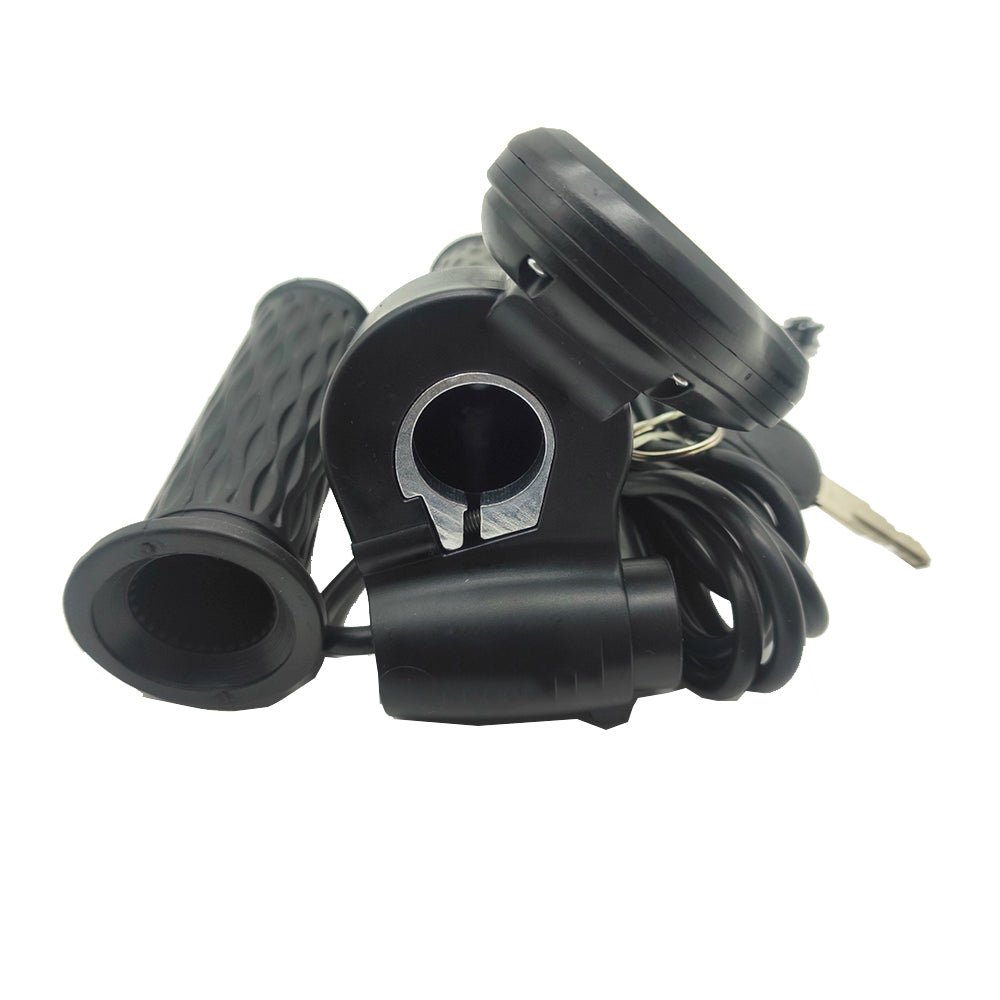

The throttle wire 150cm, hole diameter 22mm.

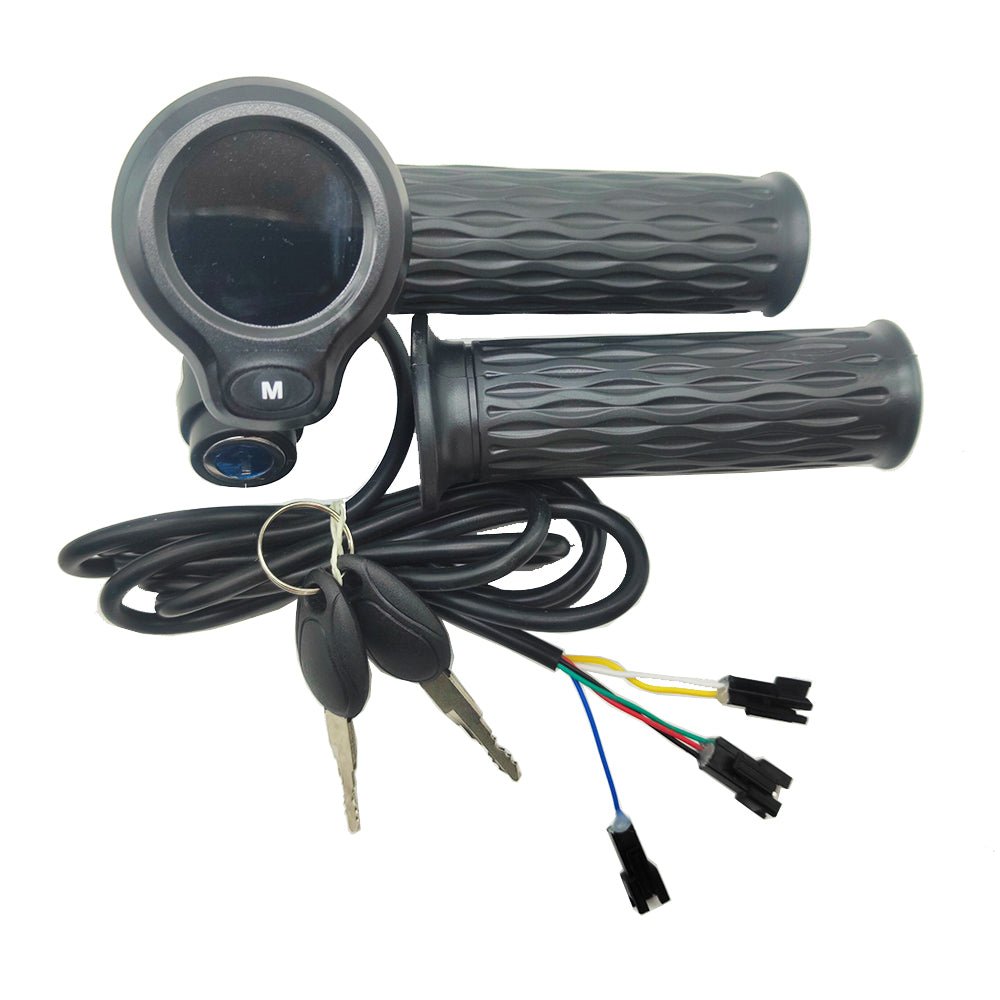

Wires:
1.key lock also call elec. door lock or electric lock）
2.throttle（normal need red to red, green to green, black to black connect to controller throttle）
3.hall speed (can connect to controller hall wires or controller Instrument line）

Note: If throttle interface not match your controller interface need buyer cut off interface to connect
